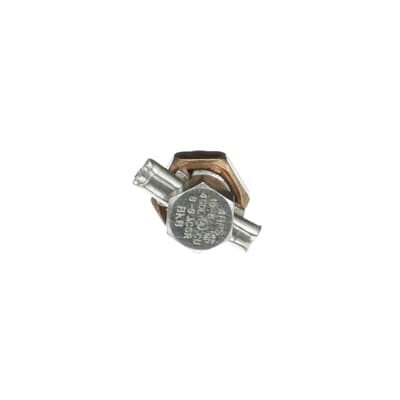

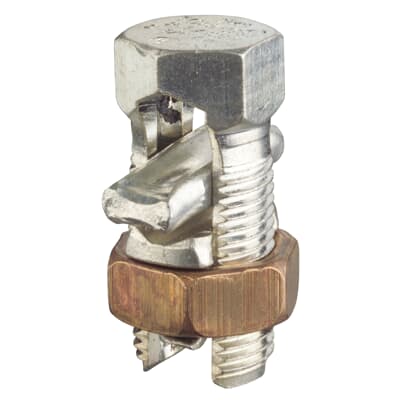

4HPS - TAB

4HPS - #4 Al-Cu Split Bolt

Blackburn

  • $5.05 (Each)
  • $5.05 (Each)
  • $505.33 (Per 100)
  • $2,021.32 (Per 400)

In-Stock: 103 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    4HPS
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    4HPS
    Description
    #4 Al-Cu Split Bolt
    Split Bolt Connector, #8 Awg (Range For Equal Main and Tap);#12 Awg (Minimum Tap With Maximum Main) Conductor Size, #6 Awg (Range For Equal Main and Tap);#4 Awg (Minimum Tap With Maximum Main-Solid) Conductor Size, Non-Insulated, Copper Conductor Material, 1-9/32 In Overall Length, Split Terminal, 0.09 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786200269 / 5414363142454 / 00783786200269
    Weight per unit
    0.087 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $5.05 (Each)
    Carton
    $505.33 (Per 100)
    Standard Packaging
    $2,021.32 (Per 400)
    Stock Availability
    Nacogdoches
    103 (Check another store)
    All Stores
    3,048
    Resources
    Images


    4HPS - Large Image

    4HPS - Large Image

    4HPS - Large Image

    4HPS - Small Image

    4HPS - Large Image
    Attachments


    4HPS - Specification Sheet

    4HPS - Specification Sheet

    4HPS - Specification Sheet

    4HPS - Specification Sheet
    Other Links


    4HPS - Other

    4HPS - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Terminal Type
    Split
    Material
    COPPER ALLOY
    Material, Color, and Finish
    Conductor Material
    Copper
    Finish
    TIN PLATED
    Dimensions and Weight
    Overall Length
    1-9/32 in
    Descriptions
    Product Type
    Split Bolt Connector
    Conn A Boulon Fendu Cu
    Long Description
    Split Bolt Connector, #8 AWG (Range for Equal Main and Tap);#12 AWG (Minimum Tap with Maximum Main) Conductor Size, #6 AWG (Range for Equal Main and Tap);#4 AWG (Minimum Tap with Maximum Main-Solid) Conductor Size, Non-Insulated, Copper Conductor Material, 1-9/32 in Overall Length, Split Terminal, 0.09 lb/EA
    Type HPS Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 6-8, Conductor Range for Equal Main and Tap CU or AL 4 Sol-12 Sol, Min Tap with One Max Main 12 Sol, Tin Plated
    Short Description
    Split Bolt Connector, Non-Insulated, 1-9/32 in L
    Special Features
    Bolt and Pressure Bar of Copper Alloy, Completely Tin Plated for Corrosion Resistance;Contoured Spacer of Electrolytic Copper
    Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copper.
    Description
    #4 AL-CU SPLIT BOLT
    Additional Information
    Minimum Conductor Size
    #8 AWG (Range for Equal Main and Tap);#12 AWG (Minimum Tap with Maximum Main)
    Maximum Conductor Size
    #6 AWG (Range for Equal Main and Tap);#4 AWG (Minimum Tap with Maximum Main-Solid)
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    Splicing;Tapping;Terminating Conductors Power and Grounding Electrical Connections;Copper;Aluminum;ASCR Conductor
    Standards Met
    UL Listed E9809, 467;CSA Certified
    package quantity
    100 CT;400 PK
    Manufacturer Information
    Brand
    Thomas & Betts
    Blackburn
    sub brand
    Blackburn
    Manufacturers Part Number
    4HPS
    GTIN
    00783786200269
    UPC
    783786200269
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Split-Bolt
    Packaging
    Weight
    0.09 lb/EA
    Weight per each
    0.087
    Carton
    100
    Package
    400
    Uses, Certifications, and Standards
    Application
    Splicing, tapping or terminating conductors in power and grounding electrical connection.
    standard
    UL E9809
