500M - TAB

500M - 500 Cu Split Bolt

Blackburn

  • $65.52 (Each)
  • $65.52 (Each)
  • $1,965.69 (Per 30)
  • $6,552.31 (Per 100)

Availablity: In Stock

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    500M
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    500M
    Description
    500 Cu Split Bolt
    Split Bolt Connector, 400 Kcmil (Range For Equal Main and Tap) Conductor Size, 500 Kcmil (Range For Equal Main and Tap);2/0 Awg (Minimum Tap With Maximum Main-Stranded) Conductor Size, Non-Insulated, Copper Conductor Material, 3-1/32 In Overall Length, Split Terminal, 0.93 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786855261 / 5414363142522 / 00783786855261
    Weight per unit
    0.925 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $65.52 (Each)
    Carton
    $65.52 (Each)
    Standard Packaging
    $1,965.69 (Per 30)
    Resources
    Images

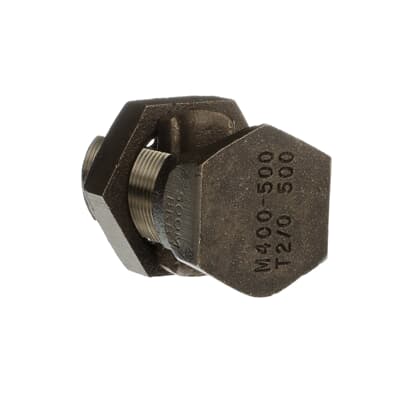

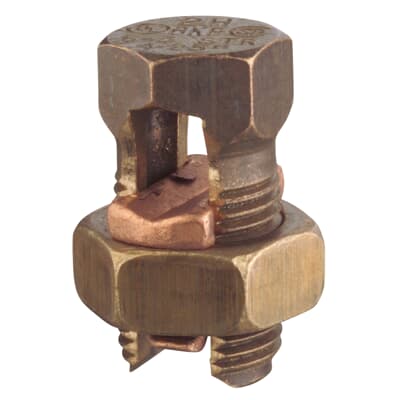

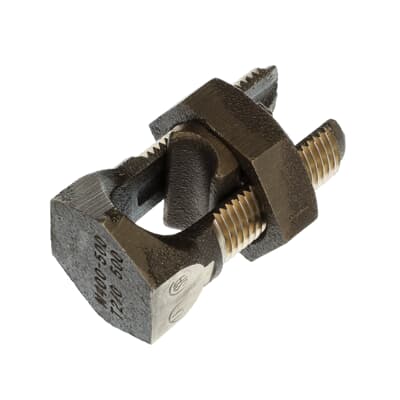

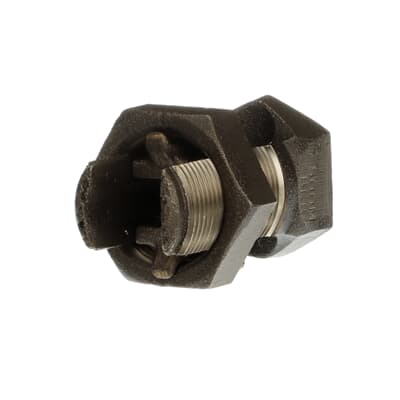

    500M - Small Image

    500M - Large Image

    500M - Large Image

    500M - Large Image

    500M - Large Image

    500M - Large Image
    Attachments


    500M - Specification Sheet

    500M - Specification Sheet

    500M - Specification Sheet
    Other Links


    500M - Other

    500M - Other

    500M - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Terminal Type
    Split
    Material
    Bronze Alloy
    Material, Color, and Finish
    Conductor Material
    Copper
    Color
    Metallic
    Dimensions and Weight
    Overall Length
    3-1/32 in
    Descriptions
    Short Description
    Split Bolt Connector, Non-Insulated, 3-1/32 in L
    Product Type
    Split Bolt Connector
    Long Description
    Split Bolt Connector, 400 kcmil (Range for Equal Main and Tap) Conductor Size, 500 kcmil (Range for Equal Main and Tap);2/0 AWG (Minimum Tap with Maximum Main-Stranded) Conductor Size, Non-Insulated, Copper Conductor Material, 3-1/32 in Overall Length, Split Terminal, 0.93 lb/EA
    Special Features
    Bolt and Nut of High-Strength Corrosion-Resistant Bronze Alloy;Copper Pressure Bar;Bolt and Nut of Hex Design
    Description
    500 CU SPLIT BOLT
    Additional Information
    Minimum Conductor Size
    400 kcmil (Range for Equal Main and Tap)
    package quantity
    1 CT;30 PK
    Maximum Conductor Size
    500 kcmil (Range for Equal Main and Tap);2/0 AWG (Minimum Tap with Maximum Main-Stranded)
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    Splicing;Tapping;Terminating Conductors Power and Grounding Electrical Connection;Copper to Copper Connections
    Standards Met
    UL Listed E9809, 467, 486C;CSA Certified
    Manufacturer Information
    sub brand
    Blackburn
    Brand
    Blackburn
    Manufacturers Part Number
    500M
    GTIN
    00783786855261
    UPC
    783786855261
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Split-Bolt
    Packaging
    Weight
    0.93 lb/EA
    Weight per each
    0.925
    Carton
    1
    Package
    30
    Uses, Certifications, and Standards
    Application
    Splicing, tapping or terminating conductors in power and grounding electrical connection.
    standard
    UL E9809
