ADR25 - TAB

ADR25 - 250 Al/Cu 1 Conduct Lug

Blackburn

  • $4.28 (Each)
  • $4.28 (Each)
  • $106.94 (Per 25)
  • $427.74 (Per 100)
  • $1,069.35 (Per 250)

In-Stock: 450 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    ADR25
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    ADR25
    Description
    250 Al/Cu 1 Conduct Lug
    Mechanical Connector Lug, #6 Awg (Stranded) Conductor Size, 250 Kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 1 Conductor, 2 In Overall Length, Screw Terminal, 0.1 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Comp & Mech Lugs and Butt Splices
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786610105 / 5414363147497 / 00783786610105
    Weight per unit
    0.105 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $4.28 (Each)
    Carton
    $106.94 (Per 25)
    Standard Packaging
    $1,069.35 (Per 250)
    Stock Availability
    Nacogdoches
    450 (Check another store)
    All Stores
    5,833
    Resources
    Images

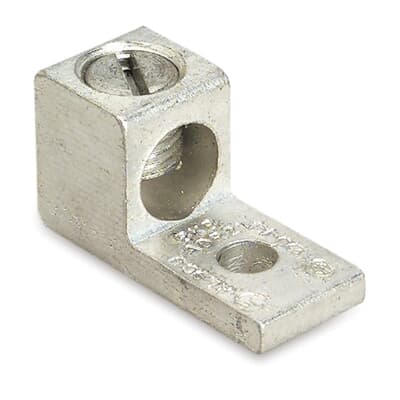

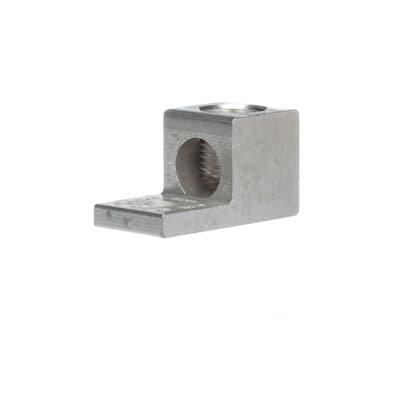

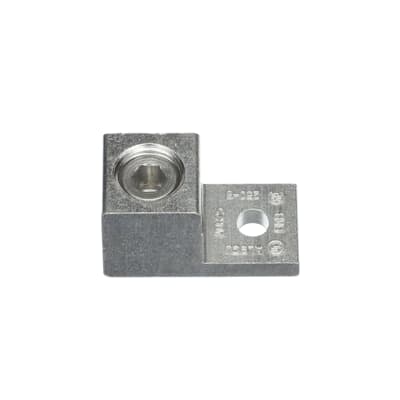

    ADR25 - Large Image

    ADR25 - Large Image

    ADR25 - Large Image

    ADR25 - Small Image

    ADR25 - Large Image
    Attachments


    ADR25 - Specification Sheet

    ADR25 - Specification Sheet

    ADR25 - Specification Sheet

    ADR25 - Specification Sheet
    Other Links


    ADR25 - Other

    ADR25 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Terminal Type
    Screw
    Number of Conductors
    1 PH
    Material
    ALUMINUM
    insulation
    None IN
    Material, Color, and Finish
    Conductor Material
    Aluminum;Copper
    Finish
    Tin-Plated
    Dimensions and Weight
    Overall Length
    2 in
    Descriptions
    Product Type
    Mechanical Connector Lug
    Conn Mecanique Al Et Cu
    Long Description
    Mechanical Connector Lug, #6 AWG (Stranded) Conductor Size, 250 kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 1 conductor, 2 in Overall Length, Screw Terminal, 0.1 lb/EA
    Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range Max 250 kcmil, Min 6 Str, Socket Screw, Tin Plated
    Short Description
    300 AL/CU 1 Conductor Mechanical Connector Lug, Non-Insulated, 2 in L
    Special Features
    Easy Installation;No Special Tools Required
    Easy Installation - no special tools required.
    Description
    250 AL/CU 1 CONDUCT LUG
    Additional Information
    Minimum Conductor Size
    #6 AWG (Stranded)
    Maximum Conductor Size
    250 kcmil
    For Stud Size
    1/4 in (Bolt)
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    Copper and Aluminum Conductor
    Made in USA
    Yes
    Standards Met
    UL Listed E9809;CSA Certified
    package quantity
    25 CT;250 PK
    Number of Mounting Holes
    1 PH
    Manufacturer Information
    Brand
    Thomas & Betts
    Blackburn
    sub brand
    Blackburn
    Manufacturers Part Number
    ADR25
    GTIN
    00783786610105
    UPC
    783786610105
    Taxonomies, Classifications, and Categories
    Category Description
    Comp & Mech Lugs and Butt Splices
    Type
    Dual-Rated Mechanical Connector
    Packaging
    Weight
    0.1 lb/EA
    Weight per each
    0.105
    Carton
    25
    Package
    250
    Uses, Certifications, and Standards
    standard
    UL E9809
