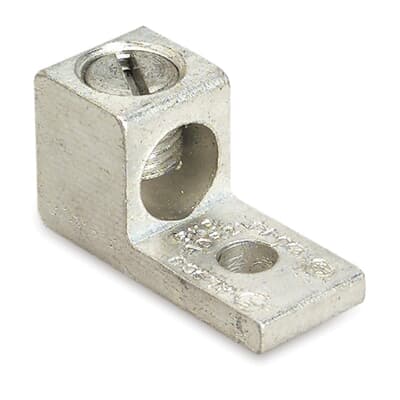

ADR60 - TAB

ADR60 - 2-600 Al/Cu 1 Conduct. Lug

Blackburn

  • $9.05 (for 1 Each)
  • $9.05 (1 Each)
  • $54.29 (6 Each)
  • $542.86 (60 Each)
  • $904.77 (100 Each)

In-Stock: 10 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    ADR60
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    ADR60
    Description
    2-600 Al/Cu 1 Conduct. Lug
    Mechanical Connector Lug, #2 Awg Conductor Size, 600 Kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 1 Conductor, 3-3/16 In Overall Length, Screw Terminal, 0.35 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786610310 / 5414363147534 / 00783786610310
    Weight per unit
    0.35 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $9.05 (1 Each)
    Carton
    $54.29 (6 Each)
    Standard Packaging
    $542.86 (60 Each)
    Stock Availability
    Nacogdoches
    10 Each (Check another store)
    All Stores
    838 Each
    Resources
    Attachments


    ADR60 - Specification Sheet

    ADR60 - Specification Sheet

    ADR60 - Specification Sheet

    ADR60 - Specification Sheet
    Images


    ADR60 - Large Image

    ADR60 - Small Image

    ADR60 - Large Image

    ADR60 - Large Image
    Other Links


    ADR60 - Other

    ADR60 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Number of Conductors
    1
    1 PH
    Terminal Type
    Screw
    Material
    ALUMINUM
    insulation
    None IN
    Material, Color, and Finish
    Conductor Material
    Aluminum;Copper
    Finish
    Tin-Plated
    Dimensions and Weight
    Overall Length
    3-3/16 in
    Descriptions
    Product Type
    Mechanical Connector Lug
    Al TP 1CNDTR 1HOLE Mount 2-600
    Long Description
    Mechanical Connector Lug, #2 AWG Conductor Size, 600 kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 1 conductor, 3-3/16 in Overall Length, Screw Terminal, 0.35 lb/EA
    Short Description
    2-600 AL/CU 1 Conductor Mechanical Connector Lug, Non-Insulated, 3-3/16 in L
    Special Features
    Easy Installation;No Special Tools Required
    Easy Installation - no special tools required.
    Description
    2-600 AL/CU 1 CONDUCT. LUG
    Additional Information
    Minimum Conductor Size
    #2 AWG
    Maximum Conductor Size
    600 kcmil
    For Stud Size
    3/8 in (Bolt)
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    Copper and Aluminum Conductor
    Made in USA
    Yes
    Standards Met
    UL Listed E9809;CSA Certified
    package quantity
    6 CT;60 PK
    Number of Mounting Holes
    1 PH
    Manufacturer Information
    Brand
    Thomas & Betts
    Blackburn
    sub brand
    Blackburn
    Manufacturers Part Number
    ADR60
    GTIN
    00783786610310
    UPC
    783786610310
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Dual-Rated Mechanical Connector
    Packaging
    Weight
    0.35 lb/EA
    Weight per each
    0.35
    Carton
    6
    Package
    60
    Uses, Certifications, and Standards
    standard
    UL E9809
    Help Improve Our Data
