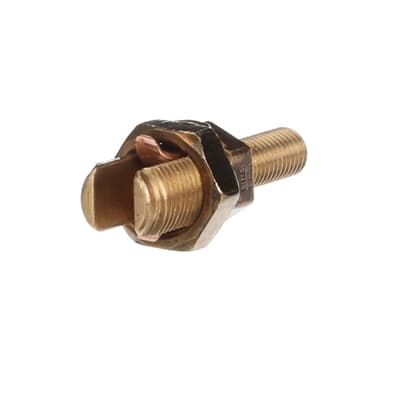

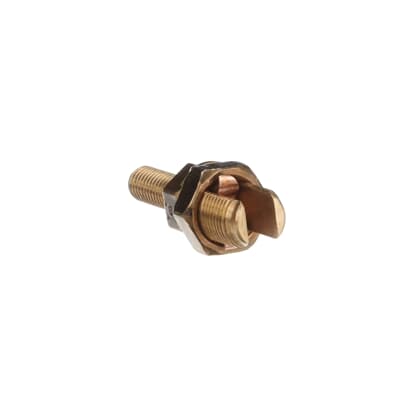

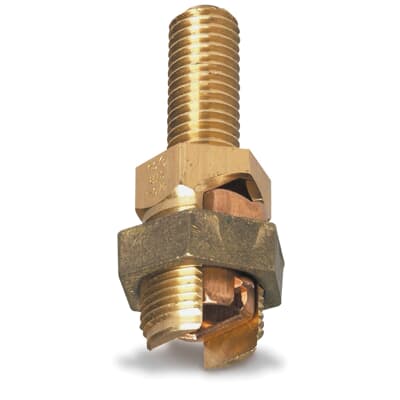

SP4DL - TAB

SP4DL - SP4DL 3/8-16X1-1/8 Sec Conn

Blackburn

  • $50.52 (for 1 Each)
  • $50.52 (1 Each)
  • $5,051.69 (100 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    SP4DL
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    SP4DL
    Description
    SP4DL 3/8-16X1-1/8 Sec Conn
    Service Post Connector, #8 Awg (Stranded);#8 Awg (Solid);10 SQ.MM (Stranded) Conductor Size, #1 Awg (Stranded);#2 Awg (Solid);35 SQ.MM (Stranded) Conductor Size, Non-Insulated, Copper Conductor Material, 600 V Ac, 0.16 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Comp & Mech Lugs and Butt Splices
    UNSPSC
    39121613 - Grounding devices or assemblies
    UPC/EAN/GTIN
    783786805297 / 5414363161479 / 00783786805297
    Weight per unit
    0.16 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $50.52 (1 Each)
    Carton
    $50.52 (1 Each)
    Standard Packaging
    $5,051.69 (100 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    514 Each
    Resources
    Attachments


    SP4DL - Specification Sheet

    SP4DL - Specification Sheet

    SP4DL - Specification Sheet
    Images


    SP4DL - Large Image

    SP4DL - Small Image

    SP4DL - Large Image

    SP4DL - Large Image

    SP4DL - Large Image
    Other Links


    SP4DL - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    insulation
    None IN
    Material, Color, and Finish
    Conductor Material
    Copper
    Bronze
    Descriptions
    Product Type
    Service Post Connector
    Goujons Long DBL 1-8 STRD, 2-8 Sol
    Long Description
    Service Post Connector, #8 AWG (Stranded);#8 AWG (Solid);10 sq.mm (Stranded) Conductor Size, #1 AWG (Stranded);#2 AWG (Solid);35 sq.mm (Stranded) Conductor Size, Non-Insulated, Copper Conductor Material, 600 V ac, 0.16 lb/EA
    Short Description
    Single Service Post Connector, 1 - 8 stranded, 2 - 8 solid, stud size 3/8 - 16 x 1 1/8
    Special Features
    Hex Design Bolts are Machined from High-Conductivity Bronze Alloy
    Hex design bolts are machined from high-conductivity bronze alloy.
    Description
    SP4DL 3/8-16X1-1/8 SEC CONN
    Additional Information
    Minimum Conductor Size
    #8 AWG (Stranded);#8 AWG (Solid);10 sq.mm (Stranded)
    Maximum Conductor Size
    #1 AWG (Stranded);#2 AWG (Solid);35 sq.mm (Stranded)
    For Stud Size
    3/8 in - 16 x 1-1/8 in
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    For Copper to Copper Connections;For Grounding of Steel Structures;Transformers using one or two Cables;For Tapping one or two Cables from Bus Bar
    Maximum Voltage Rating
    600 V ac
    Made in USA
    Yes
    Standards Met
    UL Listed E9809, 486A, 467;CSA Certified
    package quantity
    1 CT;100 PK
    Manufacturer Information
    Brand
    Blackburn
    Thomas & Betts
    sub brand
    Blackburn
    Manufacturers Part Number
    SP4DL
    GTIN
    00783786805297
    UPC
    783786805297
    Taxonomies, Classifications, and Categories
    Category Description
    Comp & Mech Lugs and Butt Splices
    Type
    Mechanical Grounding
    Packaging
    Weight
    0.16 lb/EA
    Weight per each
    0.16
    Carton
    1
    Package
    100
    Uses, Certifications, and Standards
    Application
    For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus bar.
    standard
    UL E9809
