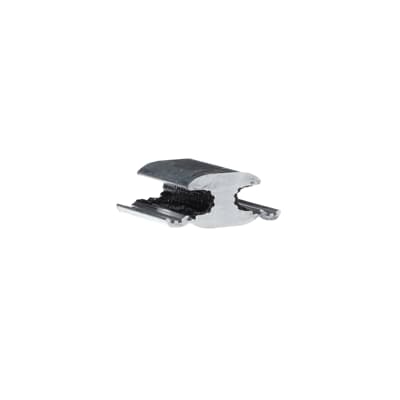

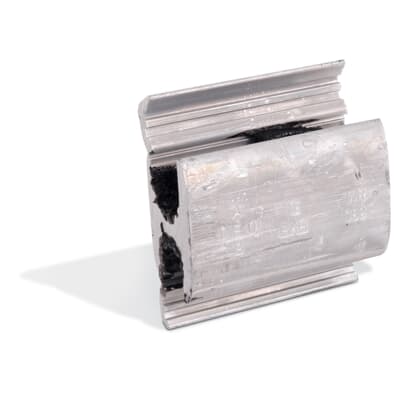

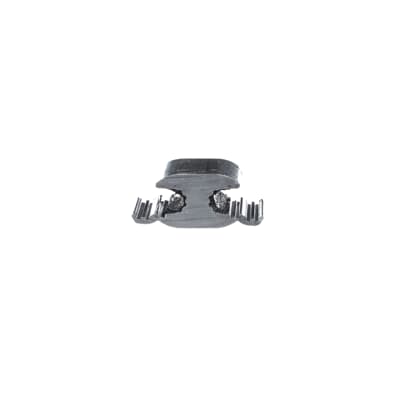

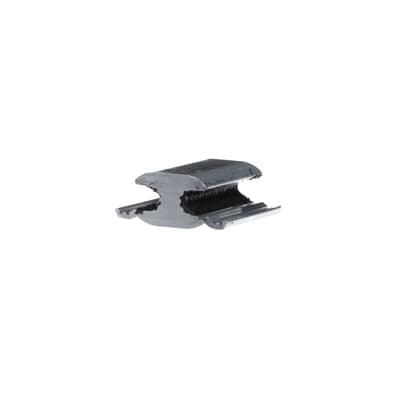

WR159 - TAB

WR159 - 1 to 1 H Tap

Blackburn

  • $2.08 (Each)
  • $2.08 (Each)
  • $52.01 (Per 25)
  • $208.05 (Per 100)
  • $520.12 (Per 250)

Availablity: In Stock

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    WR159
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    WR159
    Description
    1 to 1 H Tap
    Aluminum H-Tap Connector, Wide Range, Conductor Range Main Acsr 2-6, Stranded 1-6, Solid 2-6, Tap Acsr 2-6, Stranded 1-6, Solid 2-6, Die O
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    T&B C Tap Lugs
    UNSPSC
    39121448 - Wire or cable compression connector
    UPC/EAN/GTIN
    783786100019 / 5415022349276 / 00783786100019
    Weight per unit
    0.085 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $2.08 (Each)
    Carton
    $52.01 (Per 25)
    Standard Packaging
    $520.12 (Per 250)
    Resources
    Attachments


    WR159 - Specification Sheet

    WR159 - Specification Sheet

    WR159 - Specification Sheet

    WR159 - Specification Sheet

    WR159 - Specification Sheet
    MSDS Sheets


    WR159 - MSDS Sheet
    Other Links


    WR159 - Other

    WR159 - Other

    WR159 - Other

    WR159 - Other
    Images


    WR159 - Large Image

    WR159 - Large Image

    WR159 - Large Image

    WR159 - Small Image

    WR159 - Large Image

    WR159 - Large Image

    WR159 - Large Image


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Number of Conductors
    2
    Material
    Aluminum
    connection
    Compression
    Wire Size
    Main: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWG ; Tap: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWG
    insulation
    None
    Terminal Type
    Compression;Crimp
    Material, Color, and Finish
    Conductor Material
    Aluminum
    Dimensions and Weight
    Size
    Length 1-7/16 inch
    Overall Length
    1-7/18 in
    Descriptions
    Long Description
    H-Type Compression Connector, Non-Insulated, Aluminum Conductor Material, 2 Conductors, Up to 90 °C Operating Temperature, 1-7/18 in Overall Length, Compression/Crimp Terminal, 0.09 lb/EA
    Special Features
    Made of 1350 Aluminum Alloy for High Strength and High Conductivity;Standard Compression Tools and Dies Install all Sizes;No Special Tools Needed;Field-Proven Ribbed Design Enables Excellent Connector/Conductor Contact Without Distorting the Conduct
    Short Description
    H-Type Compression Connector, Non-Insulated, 1-7/18 in L
    Product Type
    H-Type Compression Connector
    Description
    1 TO 1 H TAP
    extra long description
    BB WR159 AL HTYPE COMP CONN 2-6ACSR
    Additional Information
    dimensions
    600.000 EA
    Bolt Size
    Distribution loads, service bonding, tap and ground connections.
    Maximum Conductor Size
    Standard Conductor-Main:#2, #4, #6 AWG (ACSR), #1, #2, #3, #4, #6 AWG (Stranded), #2, #4, #6 AWG (Solid);Standard Conductor-Tap:#1, #2, #4, #6 AWG (ACSR), #1, #2, #3, #4, #6 AWG (Stranded), #2, #4, #6 AWG (Solid);Campact Conductor-Main:#1, #2, #4, #6 AWG (ACSR), #1, #2, #3, #4, #6 AWG (Stranded);Campact Conductor-Tap:#1, #2, #4, #6 AWG (ACSR), #1, #2, #3, #4, #6 AWG (Stranded)
    Insulated/Non-Insulated
    Non-Insulated
    Maximum Operating Temperature
    Up to 90 °C
    for use with
    Hydraulic Tool
    Made in USA
    yes
    Standards Met
    RUS Accepted;ANSI C119.4
    package quantity
    25 CT;250 PK
    Manufacturer Information
    Brand
    Blackburn
    sub brand
    Blackburn
    Manufacturers Part Number
    WR159
    GTIN
    00783786100019
    UPC
    783786100019
    Taxonomies, Classifications, and Categories
    Type
    H-Type Compression Tap Connector
    Category Description
    T&B C TAP LUGS
    Packaging
    Weight
    0.09 lb/EA
    Weight per each
    0.085
    Carton
    25
    Package
    250
    Uses, Certifications, and Standards
    environmental conditions
    All Seasons / Conditions
    Application
    For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
    Mounting
    None
    standard
    RUS Accepted. Complies with ANSI C119.4 Specifications
    Temperature Rating
    up to 90 C
