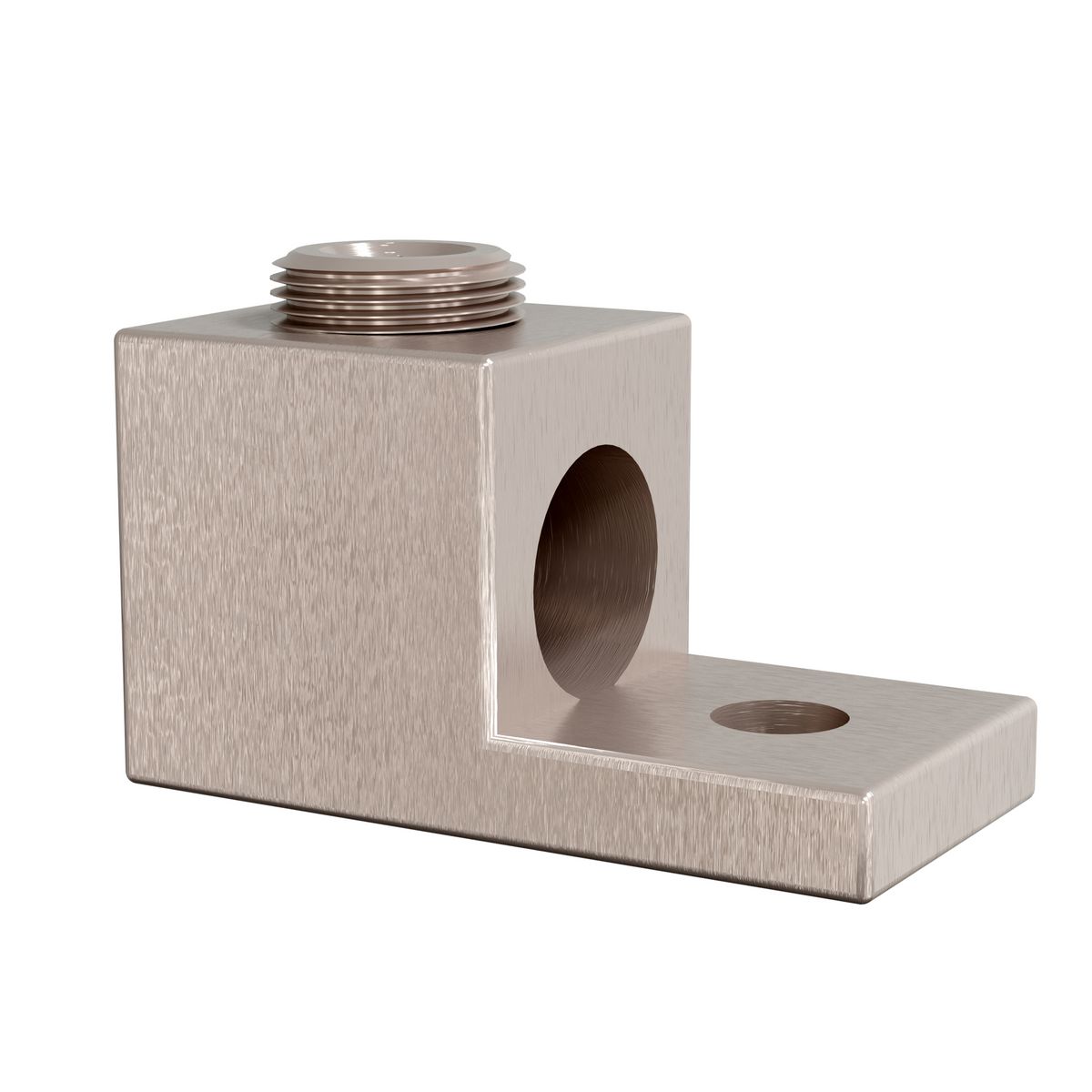

KA29U - 6STR-250 Dual Rated

Availability: Call for Availability

Buy Now

QTY:

Each

$650.88Per 100

Abb Installation Products, Inc
250 Al/Cu 1 Conduct Lug

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: KA29U Vendor Code BUR
Manufacturer: Burndy
Manufacturer's Part Number: KA29U
Description: 6STR-250 Dual Rated
Conductor Lug, #6 Awg (Stranded) Conductor Size, 250 Kcmil (Stranded) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 1 Conductor, +194 °F Operating Temperature, 2 In Overall Length, Screw Terminal
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: Comp & Mech Lugs and Butt Splices
UNSPSC: 39121408 - Mechanical connectors
UPC/GTIN: 781810370155 / 00781810370155
Weight per unit: 0.115 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Description: 6STR-250 DUAL RATED
Product Type: Conductor Lug
Long Description: Conductor Lug, #6 AWG (Stranded) Conductor Size, 250 kcmil (Stranded) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 1 conductor, +194 °F Operating Temperature, 2 in Overall Length, Screw Terminal
Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 5/16 IN, Set Screw Type: Allen Key, Length: 2 IN, Installation Torque: 275 IN-LB, Width: 1 IN, Height: 1.13 IN, Dimension D: 0.94 IN, Dimension N: 0.5 IN, Dimension T: 0.25 IN
Short Description: Conductor Lug, Non-Insulated, 2 in;51 mm, 400 CT
Special Features: These Dual-Rated Two Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro Tin-Plated to Provide Low Contact Resistance
extra long description: BUR KA29U 6STR-250 DUAL RATED

Additional Information

Minimum Conductor Size: #6 AWG (Stranded)
Maximum Conductor Size: 250 kcmil (Stranded)
For Stud Size: 5/6 in
Insulated/Non-Insulated: Non-Insulated
Maximum Operating Temperature: +194 °F
for use with: Aluminum to Aluminum Connection;Aluminum to Copper Connection;Copper to Copper Connection
Standards Met: RoHS Compliant;UL Listed 468A 468B;CSA Certified
package quantity: 400 CT
Number of Mounting Holes: 1
Bolt Size: 5/16
