Home  ›  Products  ›  Boxes & Covers  ›  Condubx, Non-Metallic CBL, S.  ›  Cable & Cord Grips  ›  CGB196
CGB196 - CRS

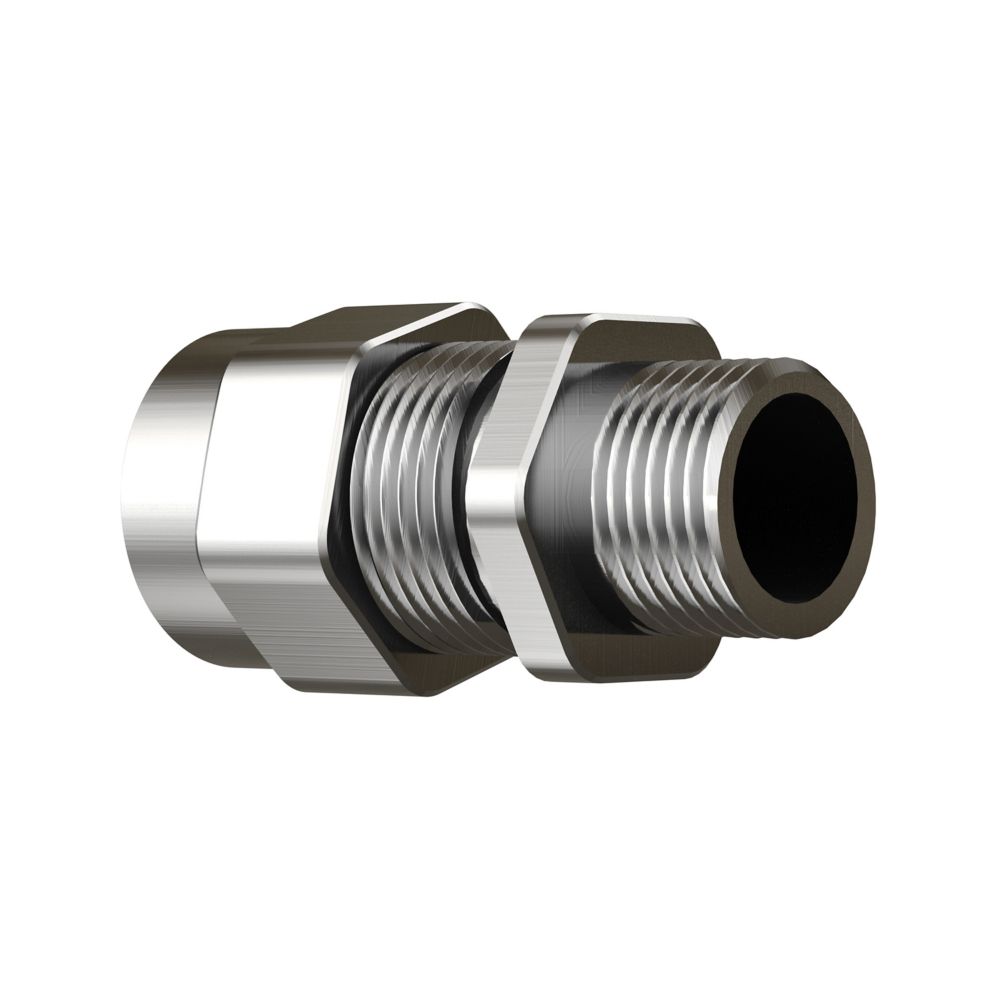

CGB196 - 1/2" Dia Male Cord Grip (.625-.750)

Eaton

  • $30.61 (Each)
  • $30.61 (Each)
  • $306.10 (Per 10)

Availablity: In Stock

Buy Now
QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    CGB196
    Manufacturer
    Eaton
    Manufacturer's Part Number
    CGB196
    Description
    1/2" Dia Male Cord Grip (.625-.750)
    Cord Gland, Steel With Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut);Neoprene (Bushing) Material, CGB Model, 0.625 to 0.75 In Cable/Cord Size, 2.375 In Length, 1.656 In Diameter, Straight Male Connection, 1/2 In Thread Size, -25 °C Operating Temperature, +40 °C Operating Temperature, 0.55 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Condubx, Non-Metallic CBL, S. - Cable & Cord Grips  Mark as Incorrect
    Suggest a New Category
    Classification
    Cord Connectors & Cord Grips
    UNSPSC
    39121311 - Electrical fittings
    UPC/GTIN
    782274131504 / 00782274131504
    Weight per unit
    0.55 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $30.61 (Each)
    Standard Packaging
    $306.10 (Per 10)
    Resources
    Images


    CGB196 - Large Image

    CGB196 - Small Image

    CGB196 - Large Image
    Attachments


    CGB196 - Specification Sheet

    CGB196 - Specification Sheet

    CGB196 - Specification Sheet
    Other Links


    CGB196 - Other

    CGB196 - Other
    Brochures


    CGB196 - Brochure


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut);Neoprene (Bushing)
    amperage rating
    49.000 56.000
    connection
    Ind Facilities & Factories - Facility: Safety and Security Systems
    Material, Color, and Finish
    material composition
    Ind Facilities & Factories - Facility: Power Distribution and Control
    Color
    SE
    Finish
    Zink Chromate
    Dimensions and Weight
    Length
    2.375 in
    Diameter
    1.656 in
    Size
    Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
    Descriptions
    Product Type
    Cord Gland
    Long Description
    Cord Gland, Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut);Neoprene (Bushing) Material, CGB Model, 0.625 to 0.75 in Cable/Cord Size, 2.375 in Length, 1.656 in Diameter, Straight Male Connection, 1/2 in Thread Size, -25 °C Operating Temperature, +40 °C Operating Temperature, 0.55 lb
    Short Description
    3/4" Cord Gland .750-.875 DIA MALE CORD GRIP
    Special Features
    Rugged, Durable Construction Protects Cords and Cables from Damage and Compact Design;Weatherproof Seal on Outer Sheath of Cable
    extra long description
    CRS-H CGB196 1/2 NPT MALE CORD/CAB
    Description
    1/2" DIA MALE CORD GRIP (.625-.750)
    Features
    They are also listed for use with tray cable types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER. When installed in accordance with NEC501.10(B)(4), CGB, CGD, CGE and CGFP non-armoured glands are suitable for use in Class I, Division 2 hazardous locations. Crouse-Hinds series CGB, CGD, CGE and CGFP non-armoured glands are installed to provide a means for passing a cord, unarmoured cable or flexible conduit into an enclosure. The glands form an environmental seal for cord or unarmoured round
    Additional Information
    Cable/Cord Size
    0.625 to 0.75 in
    Enclosure Type
    Class I Div 2;NEMA 3R;NEMA 4;NEMA 4X
    includes
    Standard Neoprene Bushing
    for use with
    Flexible Cords Including Type S, SO, STO, ST, SJ, SJT, SJTO and SVO, Tray Cable Types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER Cables Steel/Copper Wire Braided Cable Steel Wire Armoured
    Connection Type
    Straight Male
    Thread Size
    1/2 in
    Minimum Operating Temperature
    -25 °C
    Maximum Operating Temperature
    +40 °C
    Standards Met
    cULus Listed - UL File No. E23223;NEC501.10(B)(4)
    package quantity
    1 CT;10 PK
    dimensions
    2.3800 IN X 1.6600 IN X 1.6600 IN
    Cord Type
    Eaton Crouse-Hinds
    Contact Configuration
    Feraloy
    Reflector Type
    Ind Facilities & Factories - Facility: Power Distribution and Control
    Manufacturer Information
    Brand
    Eaton
    Manufacturers Part Number
    CGB196
    Model
    CGB
    sub brand
    Ind Facilities & Factories - Facility: Power Distribution and Control
    GTIN
    00782274131504
    UPC
    782274131504
    Taxonomies, Classifications, and Categories
    Category Description
    CORD CONNECTORS & CORD GRIPS
    Type
    Cable gland
    Packaging
    Weight
    0.55 lb
    Weight per each
    0.55
    Carton
    1
    Package
    10
    Uses, Certifications, and Standards
    Application
    Hazardous Location;Wet Location
    Temperature Rating
    -25 To 40 Deg C
    Enclosure
    Class I Div 2
    standard
    UL (CANADA AND US), CUL
