BR816L125SP - ETN

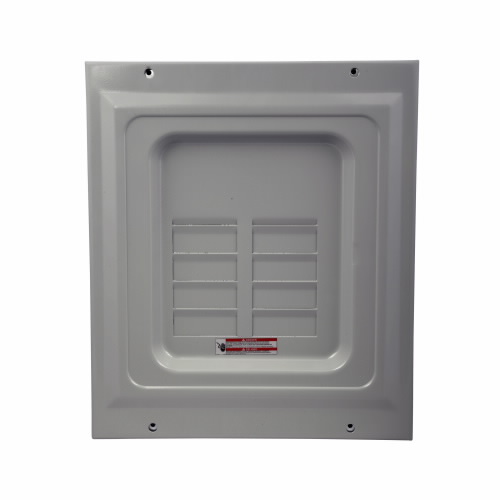

BR816L125SP - 1PH 125A Mlo 8/16 Cir Al Bus Surface Cover

Eaton

  • $54.59 (Each)
  • $54.59 (Each)

In-Stock: 1 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    BR816L125SP
    Manufacturer
    Eaton
    Manufacturer's Part Number
    BR816L125SP
    Description
    1PH 125A Mlo 8/16 Cir Al Bus Surface Cover
    Main Lug Load Center, 8 Spaces, 16 Circuits, 125 A, 120/240 V Ac, #14 to #1 Awg Wire Size, Metallic Material, Aluminum Bus Material, 11 In Overall Length, 3.56 In Overall Width, 13 In Overall Height, Surface Mount (Trim)
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Load Centers & Accessories - Single Phase Main Lug Load Cen  Mark as Incorrect
    Suggest a New Category
    Classification
    Loadcenters & Covers
    UNSPSC
    39121101 - Load centers
    UPC/GTIN
    786676002127 / 00786676002127
    Weight per unit
    9.3 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $54.59 (Each)
    Stock Availability
    Nacogdoches
    1 (Check another store)
    All Stores
    210
    Resources
    Images


    BR816L125SP - Large Image

    BR816L125SP - Small Image

    BR816L125SP - Large Image

    BR816L125SP - Large Image
    Attachments


    BR816L125SP - Specification Sheet

    BR816L125SP - Specification Sheet

    BR816L125SP - Specification Sheet
    Brochures


    BR816L125SP - Brochure
    Other Links


    BR816L125SP - Other

    BR816L125SP - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    125 A
    Voltage Rating
    120/240 V ac
    Wire Size
    #14 to #1 AWG
    Material
    Metallic
    interrupt rating
    10 kAIC
    amperage rating
    125 A
    Phase
    1
    Cover Type
    Cover not included
    Number of Wires
    Three-wire
    Material, Color, and Finish
    Bus Material
    Aluminum
    Enclosure Material
    METALLIC
    Dimensions and Weight
    Overall Length
    11 in;279.4 mm
    Size
    7
    Descriptions
    Features
    Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
    Short Description
    NEMA 1 Main Lug Load Center, 8/16 C, 125 A, Surface Mount
    Product Type
    Main Lug Load Center
    Long Description
    Main Lug Load Center, 8 Spaces, 16 Circuits, 125 A, 120/240 V ac, #14 to #1 AWG Wire Size, Metallic Material, Aluminum Bus Material, 11 in Overall Length, 3.56 in Overall Width, 13 in Overall Height, Surface Mount (Trim)
    Special Features
    Current Design
    Description
    1PH 125A MLO 8/16 CIR AL BUS SURFACE COVER
    Additional Information
    number of spaces
    8
    Number of Circuits
    16
    Enclosure Type
    NEMA 1
    for use with
    Type BR 1-Inch Breakers
    Overall Width
    3.56 in;90.5 mm
    Overall Height
    13 in;330.2 mm
    Circuit Breaker Compatibility
    BR Circuit Breaker
    Mounting Type
    Surface Mount (Trim)
    Recommended Environment
    Indoor
    Standards Met
    UL 67 Listed;UL 50 Listed
    Made in USA
    Yes
    dimensions
    3.5600 IN X 11.0000 IN X 13.0000 IN
    Box Size
    7 IN
    main circuit breaker
    CEMAT RSRT9 V7.0 OS SOFTWARE
    cover
    Cover not included
    Manufacturer Information
    Brand
    Eaton Corp
    Viton(R)
    Manufacturers Part Number
    BR816L125SP
    GTIN
    00786676002127
    UPC
    786676002127
    Taxonomies, Classifications, and Categories
    Category Description
    LOADCENTERS & COVERS
    Type
    Main lug loadcenter
    unspsc code
    MODULAR LINE CORD, TELEPHONE LINE EXTENSION CORD TYPE; 15 FT LENGTH IN FT; METALLIC COLOR FAMILY; SILVER MANUFACTURERS COLOR NAME; GC[T] BRAND; CONNECTOR TYPE MODULAR PLUG; CORD SIZE (6) 26 AWG
    igcc
    PLUG, NON POLARIZED TYPE; THERMOPLASTIC MATERIAL; WHITE COLOR; 1-15P CONFIGURATION; UL 1706, CSA APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; IMPACT RESISTANT; (2) 18 AWG CORD SIZE; HOMESELECT[T] BRAND
    Packaging
    Weight per each
    9.3
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Power Distribution
    Enclosure
    NEMA 1
    Mounting
    Surface mounting
    standard
    UL 50,UL 67
