A202008LP - HOF

A202008LP - 20X20X8 N12 CH XLMP CVR

Nvent Hoffman

  • $443.00 (for 1 Each)
  • $443.00 (1 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    A202008LP
    Manufacturer
    Nvent Hoffman
    Manufacturer's Part Number
    A202008LP
    Description
    20X20X8 N12 CH XLMP CVR

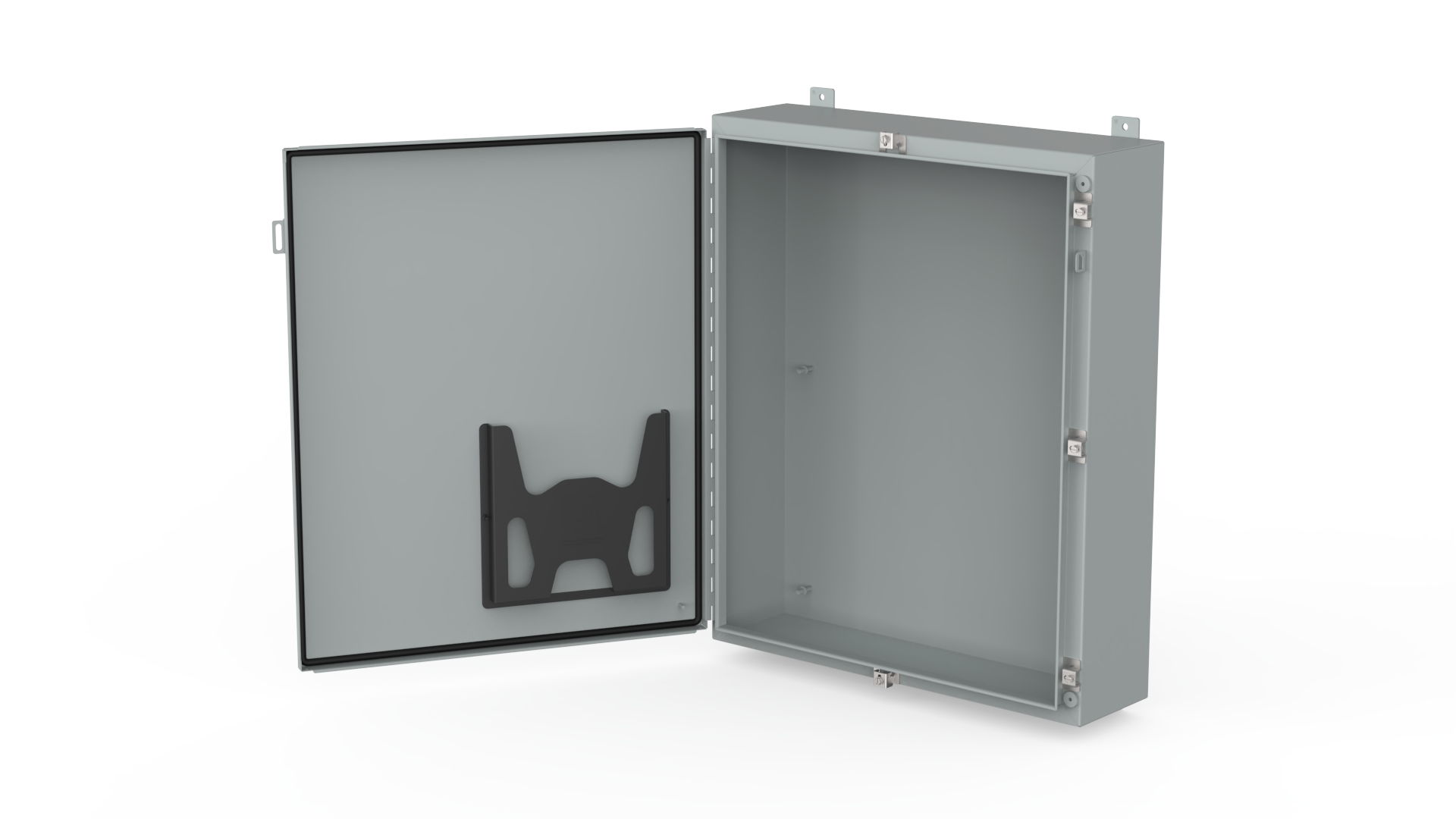

    Wall-Mount Enclosure, Steel, Type 12 Continuous Hinge, Wall Mount, White (Inside);Ansi 61 Gray (Outside), White (Inside);Gray (Door), 20 In Overall Width, 20 In Overall Length, 8 In Overall Height, 32.04 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Metal Enclosures & Cabinets - Nema Types 12 & 13 Metallic En  Mark as Incorrect
    Suggest a New Category
    Classification
    Steel Junction Boxes
    UNSPSC
    39121324 - Electrical general purpose enclosure
    UPC/GTIN
    783510281700 / 00783510281700
    Weight per unit
    32.04 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $443.00 (1 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    65 Each
    Resources
    Installation Sheets


    A202008LP - Installation Sheet
    Attachments


    A202008LP - Specification Sheet

    A202008LP - Specification Sheet
    Images


    A202008LP - Small Image

    A202008LP - Large Image

    A202008LP - Large Image
    Other Links


    A202008LP - Other

    A202008LP - Other

    A202008LP - Other
    Specifications Sheets


    A202008LP - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Steel IN
    Steel
    Cover Type
    Type 12 Continuous Hinge
    Material, Color, and Finish
    Color
    White (Inside);ANSI 61 Gray (Outside)
    Dimensions and Weight
    Size
    20.00x20.00 8.00 in
    Overall Length
    20 in;508 mm
    Descriptions
    Product Type
    Enclosure 20.00X20.00X8.00
    Wall-Mount Enclosure
    Special Features
    Enclosure bodies are 14 or 16 gauge steel. Doors are 14 gauge steel., Seams continuously welded and ground smooth, External wall-mounting brackets, Formed external return flanges around all sides of enclosure opening, Screw-down door clamps, R
    Continuously Welded and Ground Smooth External Wall-Mounting Brackets;Formed External Return Flanges Around All Sides of Enclosure Opening;Screw-Down Door Clamps
    Description
    20X20X8 N12 CH XLMP CVR
    Long Description
    Wall-Mount Enclosure, Steel, Type 12 Continuous Hinge, Wall Mount, White (Inside);ANSI 61 Gray (Outside), White (Inside);Gray (Door), 20 in Overall Width, 20 in Overall Length, 8 in Overall Height, 32.04 lb
    Short Description
    24X24X8 Wall-Mount Enclosure, Steel, White (Inside);Ansi 61 Gray (Outside)
    Additional Information
    Enclosure Type
    NEMA 12/13
    Mounting Type
    Wall Mount
    Finish/Coating
    White (Inside);Gray (Door)
    ip rating
    IP65
    Overall Width
    20 in;508 mm
    Overall Height
    8 in;203 mm
    Standards Met
    UL 508A Listed;cUL Listed;CSA Certified
    Made in USA
    Yes
    Manufacturer Information
    Brand
    Hoffman Enclosures, Inc.
    Nvent Hoffman
    J-Series
    sub brand
    Hoffman
    Manufacturers Part Number
    A202008LP
    GTIN
    00783510281700
    UPC
    783510281700
    Taxonomies, Classifications, and Categories
    Type
    Wall-Mount, Mild Steel
    Category Description
    STEEL JUNCTION BOXES
    Packaging
    Weight
    32.04 lb
    Weight per each
    32.04
    Carton
    1
    Uses, Certifications, and Standards
    nema rating
    12 Indoor, dust-resistant
    Application
    For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.
    Applications Requiring a Bright White Interior to Increase Control Visibility
    standard
    UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File No. 42186: Type 12 , IEC 60529, IP65
