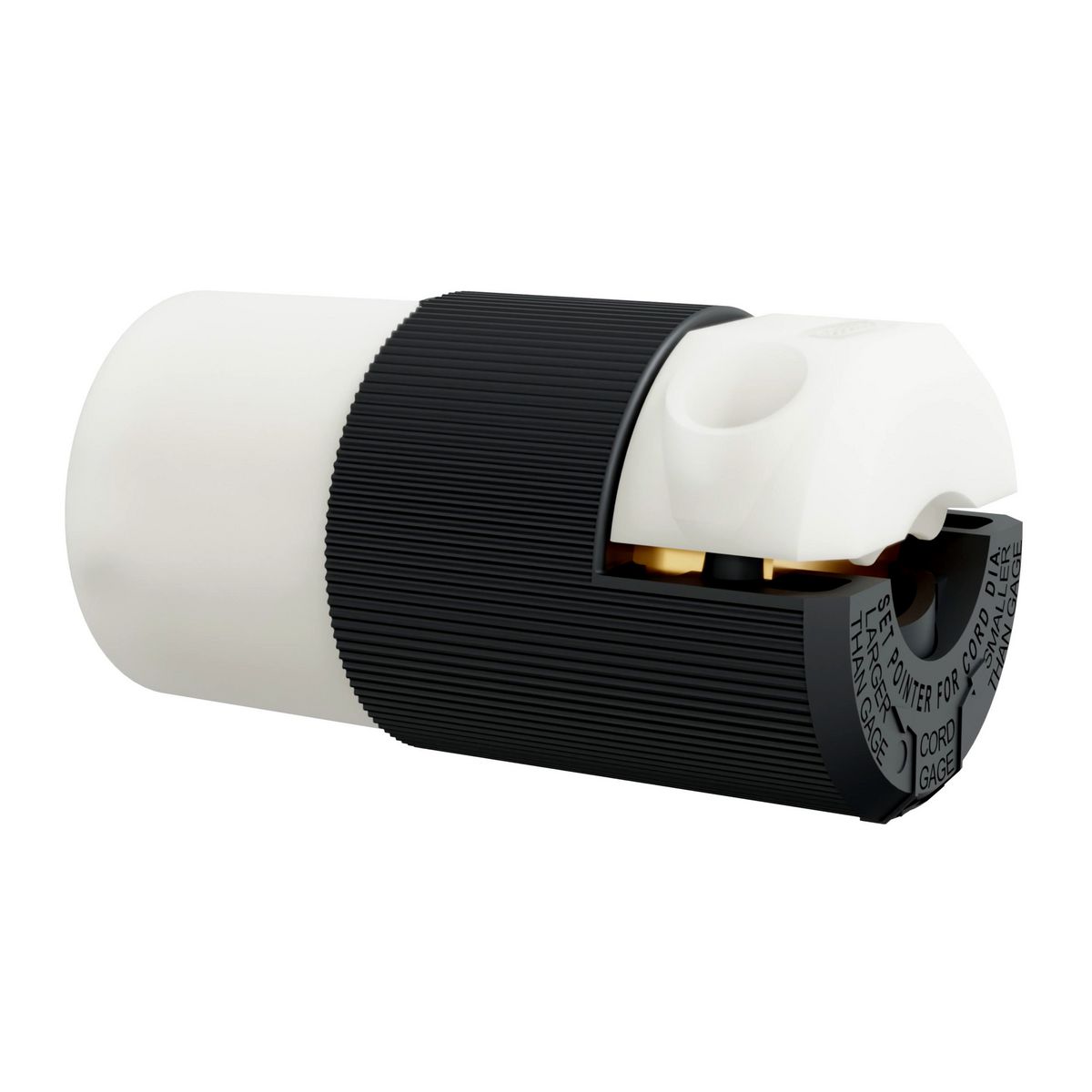

HBL5269C - Conn, 15A 125V, 5-15R, B/W

WDK

$36.46 (Each)
$36.46 (Each)
$364.60 (Per 10)

Availability: Call for Availability

Buy Now

QTY:

Each

Also in stock

$2,719.45Per 100

PS5269X

Pass & Seymour/Legrand
STR BLD Conn 3W 15A 125V B&W

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: HBL5269C Vendor Code HWD
Manufacturer: WDK
Manufacturer's Part Number: HBL5269C
Description: Conn, 15A 125V, 5-15R, B/W
Straight Blade Device Connector, 15 A, 125 V Ac, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +75 °C Operating Temperature, Screw/Clamp Terminal, 1.527 In Diameter, Cord Mounted, 2.78 In Length, #18 to #8 Awg (Copper Conductor) Wire Size, Impact and Chemical Resistant, 0.15 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Commercial Cord Connectors
UNSPSC: 39121421 - Electrical connector assembly
UPC/EAN/GTIN: 783585173252 / 0783585173252 / 00783585173252
Weight per unit: 0.2 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $36.46 (Each)
Carton: $364.60 (Per 10)
Standard Packaging: $36.46 (Each)

Resources

Images
: HBL5269C - Large Image
: HBL5269C - Large Image
: HBL5269C - Large Image
: HBL5269C - Large Image
: HBL5269C - Large Image
: HBL5269C - Large Image
: HBL5269C - Small Image
: HBL5269C - Large Image
Other Links
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
: HBL5269C - Other
Attachments
: HBL5269C - Specification Sheet
Specifications Sheets
: HBL5269C - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 15 A
Voltage Rating: 125 V ac
Number of Wires: 3
Material: Nylon (Housing/Cord Clamp, Blade Holder);Clear Polycarbonate (Terminal Retainer);Brass (Contact, Terminal Screws);Nickel Plated Steel (Terminal Clamp, Assembly Screws)
Terminal Type: Screw;Clamp
Wire Size: #18 to #8 AWG (Copper Conductor)
amperage rating: 15
Poles: 2-Pole
Number of Conductors: 3
insulation: Insulated Body
connection: Screw Terminals

Material, Color, and Finish

Color: Black;White
Finish: Nickel Plated (Terminal Clamp, Assembly Screw)

Dimensions and Weight

Diameter: 1.527 in;38.78 mm
Length: 2.78 in;70.64 mm
Size: 2.65 in x 1.55 in x 2.65 in

Descriptions

Product Type: Straight Blade Device Connector
Description: CONN, 15A 125V, 5-15R, B/W
Long Description: Straight Blade Device Connector, 15 A, 125 V ac, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +75 °C Operating Temperature, Screw/Clamp Terminal, 1.527 in Diameter, Cord Mounted, 2.78 in Length, #18 to #8 AWG (Copper Conductor) Wire Size, Impact and Chemical Resistant, 0.15 lb
Features: Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Black and White, Single Pack.
Short Description: Straight Blade Device Connector, 15 A, 125 VAC, Black;White
Special Features: Individual Wiring Terminals Completely Enclosed;Fast Lead Assembly Screws;Beveled Housing Prevents Snagging
extra long description: HWDK HBL5269C CONN, 15A 125V, 5-15R

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +75 °C
Mounting Type: Cord Mounted
Resistance Properties: Impact and Chemical Resistant
package quantity: 1 CT;10 PK
Standards Met: UL 498 Listed;UL FS WC596;CSA Certified C22.2
pallet quantity: 6600

Manufacturer Information

Manufacturers Part Number: HBL5269C
Brand: Hubbell Wiring Devices
series: Insulgrip®
GTIN: 00783585173252
UPC: 783585173252

Taxonomies, Classifications, and Categories

Category Description: Commercial cord connectors
Type: Connector Body

Packaging

Weight: 0.15 lb
Weight per each: 0.2
Carton: 10
Package: 1

Uses, Certifications, and Standards

nema rating: NEMA 5-15R
Application: Industrial/Commercial
Mounting: Cord
standard: CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
environmental conditions: Indoor Dry unless protected by additional means
