U17970K3LK2L - MIB

Also in stock

UTH43369UCH - MTR SKT, 320A, W/ Lever Bypass, 1 Phase - Eaton Corp
$265.27Per Each

Eaton Corp
MTR SKT, 320A, W/ Lever Bypass, 1 Phase


View or Compare

U17970K3LK2L - 320A 1PH U/G 4T LVR Bypass Meter Socket

Milbank

  • $279.99 (for 1 Each)
  • $279.99 (1 Each)
  • $3,359.88 (12 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    U17970K3LK2L
    Manufacturer
    Milbank
    Manufacturer's Part Number
    U1797-O-K3L-K2L
    Description
    320A 1PH U/G 4T LVR Bypass Meter Socket
    Meter Socket, 320 A, 30 In Overall Height, 15 In Overall Width, 4-7/8 In Overall Length, Surface Mount, 1 Phase, Plain Top Hub, 4 Jaws, 4 Wires, 600 V Ac, #4 Awg to 600 Kcmil;1/0 Awg to 250 Kcmil;#6 Awg to 350 Kcmil Wire Size, Overhead/Underground Feed, 32.4 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Single Meter Sockets - Residential Single Meter Socke  Mark as Incorrect
    Suggest a New Category
    Classification
    Temp. Power Panels & Accessories
    UNSPSC
    39121102 - Meter centers or sockets
    UPC/GTIN
    784572301726 / 00784572301726
    Weight per unit
    32.4 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $279.99 (1 Each)
    Standard Packaging
    $3,359.88 (12 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    47 Each
    Resources
    Images

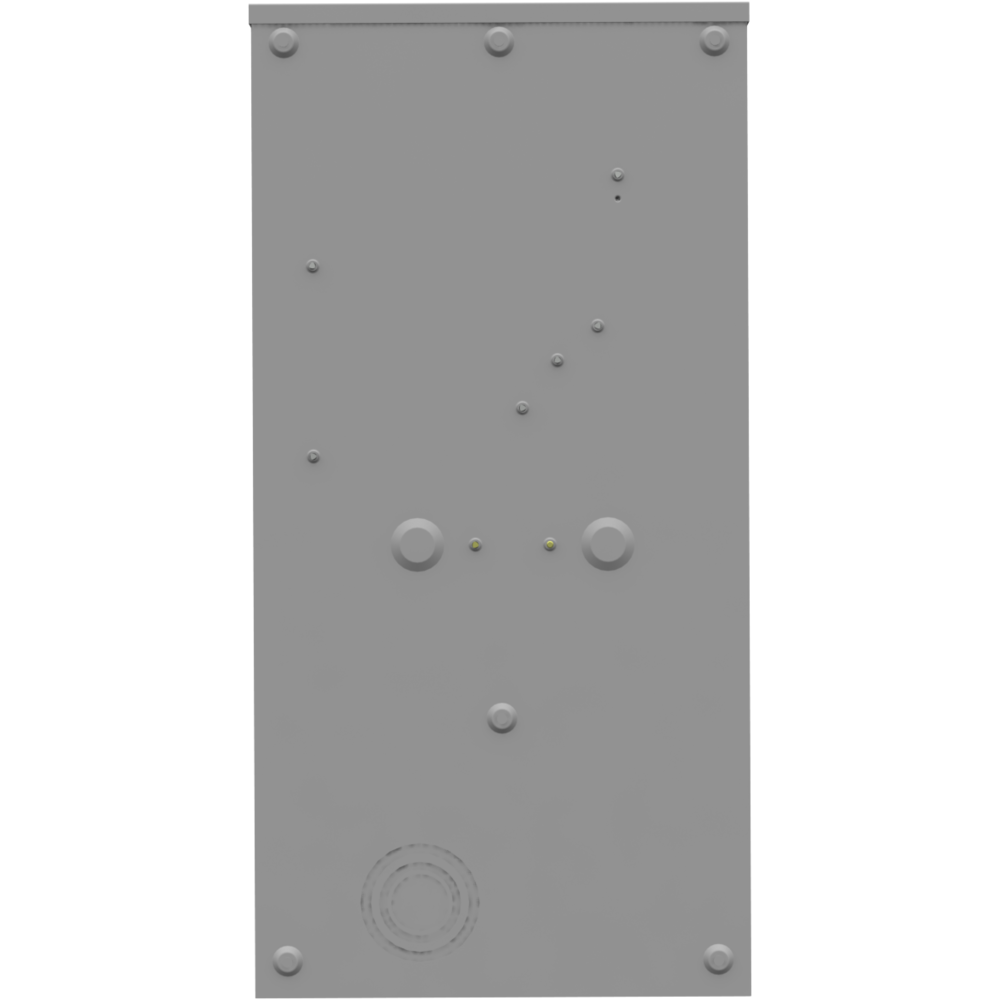

    U17970K3LK2L - Large Image

    U17970K3LK2L - Small Image

    U17970K3LK2L - Large Image
    Specifications Sheets


    U17970K3LK2L - Specification Sheet
    Installation Sheets


    U17970K3LK2L - Installation Sheet
    Attachments


    U17970K3LK2L - Specification Sheet

    U17970K3LK2L - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    320 A
    FXCS-0B24CL
    Number of Phases
    1
    Number of Wires
    4
    Voltage Rating
    600 V ac
    600 VAC AT 60 HZ
    Wire Size
    #4 AWG to 600 kcmil;1/0 AWG to 250 kcmil;#6 AWG to 350 kcmil
    4 AWG TO 600 KCMIL, (2) 1/0 AWG TO 250 KCMIL (LINE, ALUMINUM/COPPER), 6 AWG TO 350 KCMIL (LOAD, ALUMINUM/COPPER)
    Material
    0.57 to 0.92 Inch
    Material, Color, and Finish
    Finish
    15-1/8 Inch L x 5-3/4 Inch W x 4 Inch H
    Enclosure Material
    Powder Coated G90 Galvanized Steel
    Dimensions and Weight
    Overall Length
    4-7/8 in
    Size
    15 INCH W X 4 7/8 INCH D X 30 INCH H
    Width
    F MALE TO BNC FEMALE
    Height
    Underground
    Descriptions
    Product Type
    Single Position Meter Socket
    Meter Socket
    Description
    320A 1PH U/G 4T LVR BYPASS METER SOCKET
    Long Description
    Meter Socket, 320 A, 30 in Overall Height, 15 in Overall Width, 4-7/8 in Overall Length, Surface Mount, 1 Phase, Plain Top Hub, 4 Jaws, 4 Wires, 600 V ac, #4 AWG to 600 kcmil;1/0 AWG to 250 kcmil;#6 AWG to 350 kcmil Wire Size, Overhead/UnderGround Feed, 32.4 lb
    SINGLE POSITION METER SOCKET, RINGLESS TYPE; 15 INCH W X 4-7/8 INCH D X 30 INCH H SIZE; 4 AWG TO 600 KCMIL/(2) 1/0 AWG TO 250 KCMIL (LINE), 6 AWG TO 350 KCMIL (LOAD) WIRE SIZE; POWDER COATED G90 GALVANIZED STEEL ENCLOSURE MATERIAL; UL APPROVAL
    Features
    4 Terminal Ringless Plain Top Lever Bypass Single Connector Locking 4-600kcmil Double Connector Locking 6-350kcmil
    Short Description
    Meter Socket, 320 A, 600VAC, #4 AWG to 600 kcmil;1/0 AWG to 250 kcmil;#6 AWG to 350 kcmil
    Commodity Description
    RESIDENTIAL SINGLE METER SOCKETS
    Additional Information
    Surface Mounting
    Additional Information
    accessory type
    Meter Socket
    Overall Height
    30 in
    Overall Width
    15 in
    Mounting Type
    Surface Mount
    Enclosure Type
    NEMA 3R
    Hub Type
    Plain Top
    BLANK
    feed type
    Overhead/Underground
    Standards Met
    UL Listed
    package quantity
    1 CT;12 PK
    Neutral Type
    (3) Barrel Ground Lug
    Circuit Configuration
    1-Phase
    Knockouts
    78178669542
    Cord Length
    78393619013
    Number of Outlets
    78393619155
    Number of Jaws
    798
    Power Rating
    I-BEAM LEVEL, I-BEAM TYPE; ALUMINUM MATERIAL; 48 INCH; 48 LENGTH - DECIMAL; 48 LENGTH - FRACTIONAL; CARPENTER APPLICATION; 2 PLUMB(S); 3 VIAL(S); 1 LEVEL(S); STANLEY. BRAND
    Bypass Switch Type
    LEVER
    Service Type
    UNDERGROUND
    Manufacturer Information
    Brand
    MILBANK
    Milbank MFG.
    MILBANK[R]
    Manufacturers Part Number
    U1797-O-K3L-K2L
    GTIN
    00784572301726
    UPC
    784572301726
    Taxonomies, Classifications, and Categories
    Category Description
    TEMP. POWER PANELS & ACCESSORIES
    Type
    RINGLESS
    Packaging
    Weight
    32.4 lb
    Weight per each
    32.4
    Carton
    1
    Package
    12
    Uses, Certifications, and Standards
    Application
    Meter Socket
    Enclosure
    NEMA 3R
    Mounting
    UL
    Approval
    UL mA
    Help Improve Our Data
