1597TRW - PAS

1597TRW - 15A 125V Gfci RCPT

Legrand-Pass & Seymour

  • $13.60 (for 1 Each)
  • $13.60 (1 Each)
  • $136.00 (10 Each)

In-Stock: 50 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    1597TRW
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    1597TRW
    Description
    15A 125V Gfci RCPT
    Self-Test Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 Awg Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 HZ, 1.73 In Width, 4.20 In Height, Thermoplatic Material, White, 0.025 Sec Trip Time, Tamper Resistant, 0.2800 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Residential Gfci Devices
    UNSPSC
    39121633 - Circuit interruptor
    UPC/GTIN
    785007035759 / 00785007035759
    Weight per unit
    0.28 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $13.60 (1 Each)
    Standard Packaging
    $136.00 (10 Each)
    Stock Availability
    Nacogdoches
    50 Each (Check another store)
    All Stores
    9,093 Each
    Resources

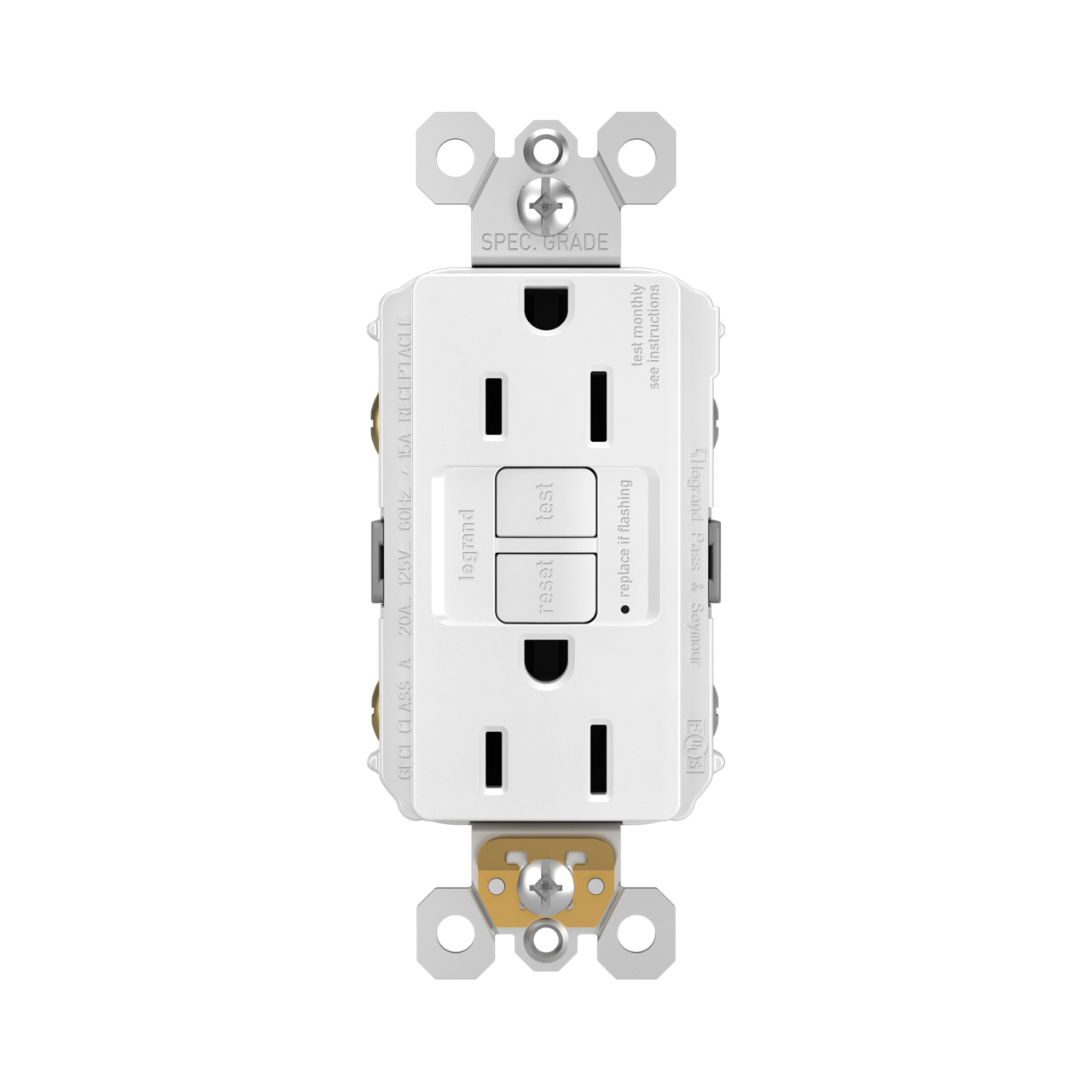

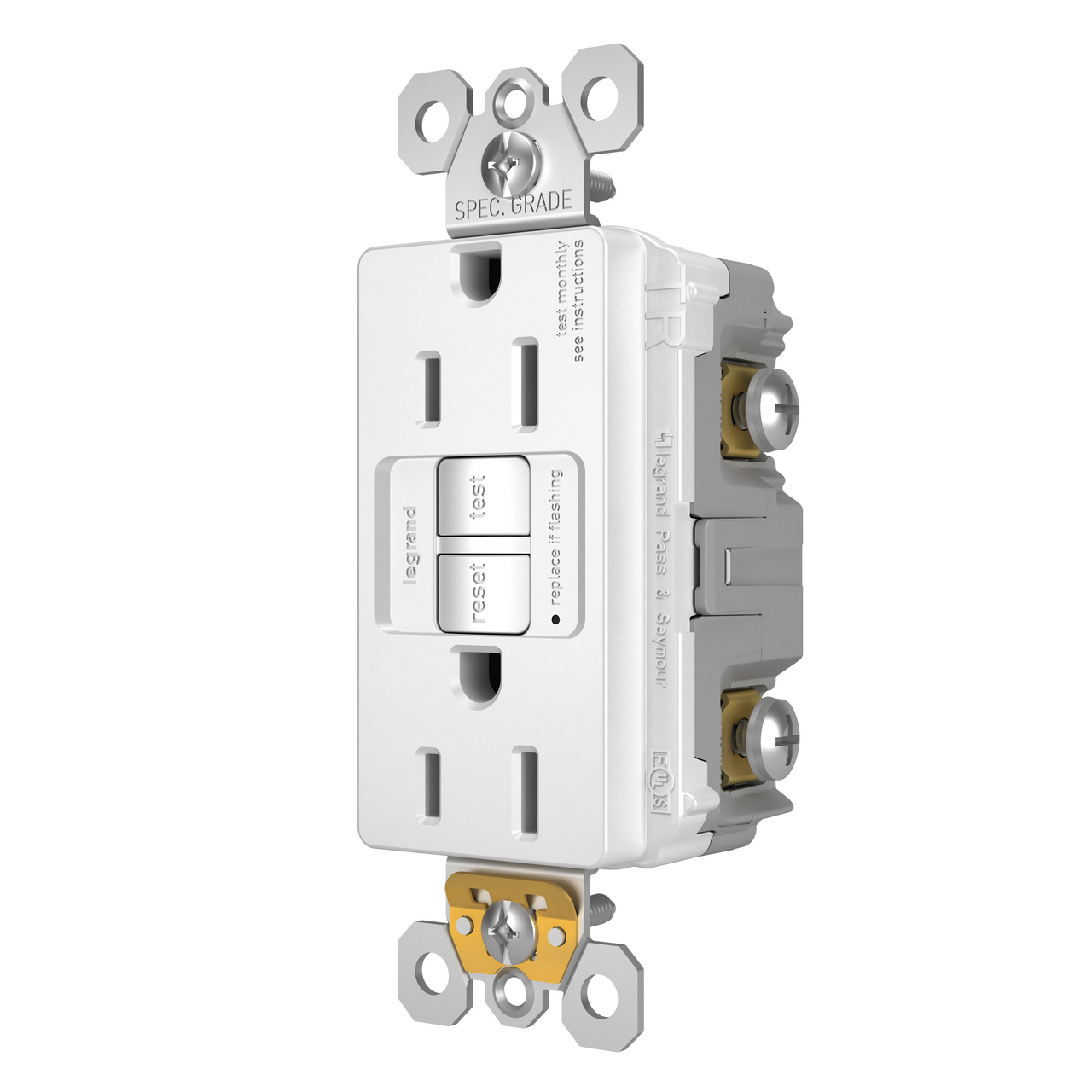

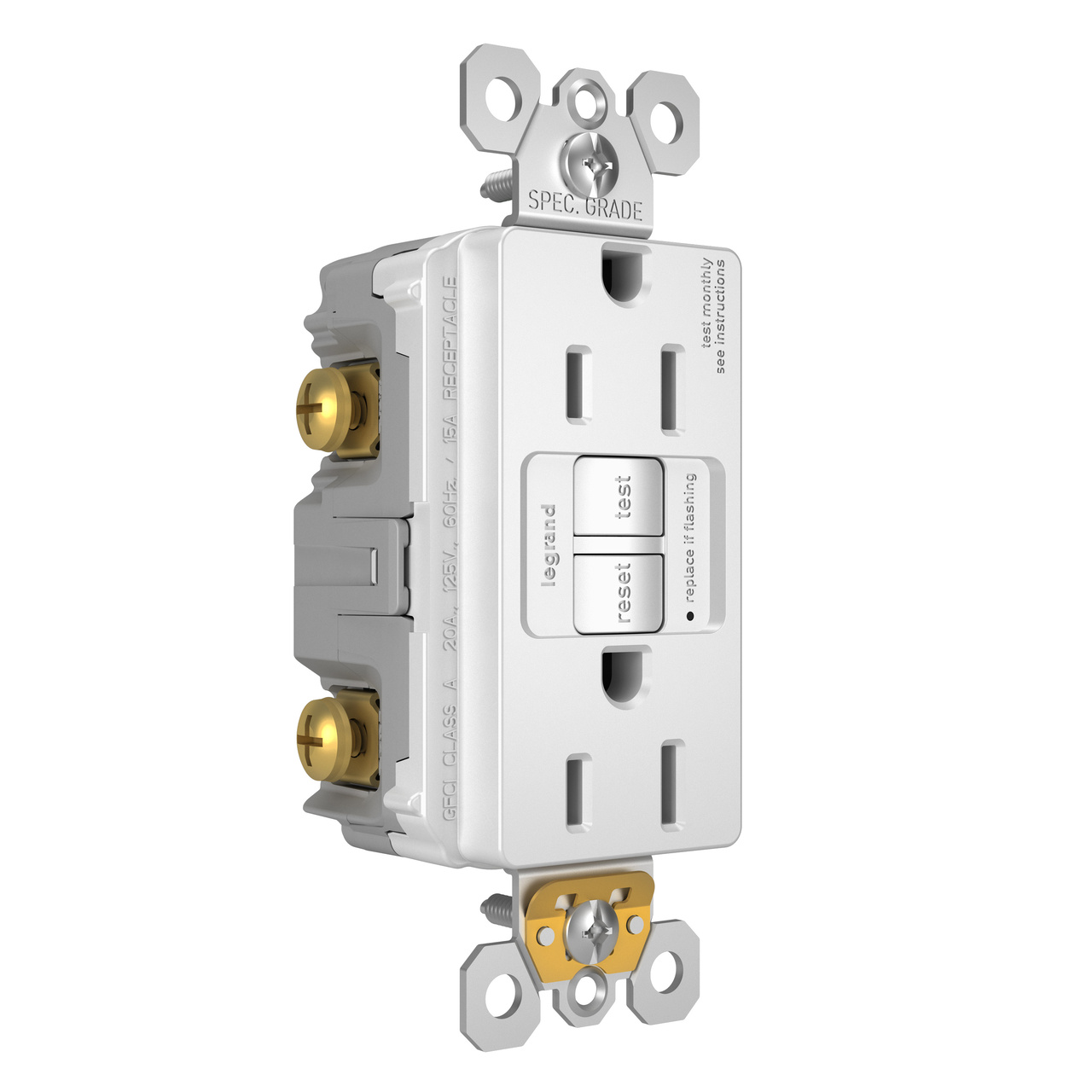

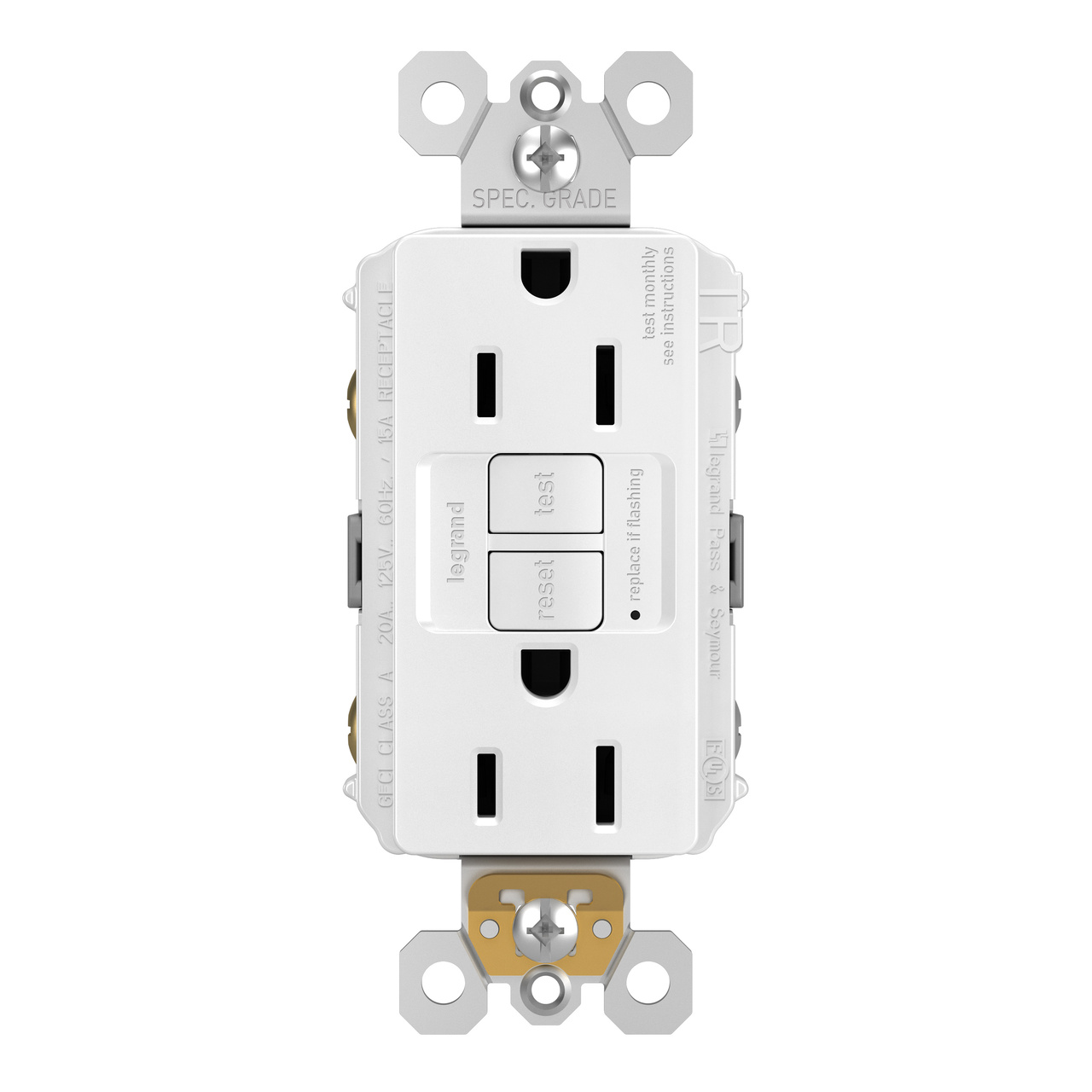

    Images


    1597TRW - Small Image

    1597TRW - Large Image

    1597TRW - Large Image
    Attachments


    1597TRW - Specification Sheet

    1597TRW - Specification Sheet
    Other Links


    1597TRW - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    15 A
    connection
    Back and side wire
    Voltage Rating
    125 A
    125 V
    amperage rating
    15 A
    Poles
    2 in
    interrupt rating
    4 to 6 mA
    actuator
    Control Circuit
    Material
    Thermoplatic
    Material, Color, and Finish
    Color
    White
    Dimensions and Weight
    Height
    4.20 in
    4.2 in
    Width
    78119796233
    Length
    PN14-6FN-C
    Descriptions
    Product Type
    Radiant Self Test TR Gfci 15A 125V WH
    Self-Test Duplex Receptacle
    Description
    15A 125V GFCI RCPT
    Long Description
    Self-Test Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplatic Material, White, 0.025 sec Trip Time, Tamper Resistant, 0.2800 lb
    Features
    The radiant(R) collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock(TM) Protection feature: if critical components are damaged and protection is lost, po
    Short Description
    15 A, 125 V, Self-Test Duplex Receptacle, White, GFCI, TR, WR
    Special Features
    10 kA Short Circuit Rating;20 Amp Feed-Thru Capacity
    Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
    Additional Information
    Receptacle Type
    Self Test Duplex
    Compatible Wire Size
    #14 to #10 AWG
    actuator type
    Control Circuit
    Connection Type
    Back and Side Wired
    Trip Time
    0.025 sec
    Resistance Properties
    Tamper Resistant
    package quantity
    1 CT;10 PK
    Standards Met
    cULus Listed;UL Listed;fsUL Listed;UL 94 v2;UL498;Federal Specifications
    Trip Type
    .025 Second Nominal
    trip range
    4 to 6 mA
    Manufacturer Information
    Brand
    Pass & Seymour/Legrand
    LEGRAND-PASS & SEYMOUR
    Radiant
    PASS & SEYMOUR
    legrand
    Manufacturers Part Number
    1597-TRW
    1597TRW
    sub brand
    Pass & Seymour
    GTIN
    00785007035759
    UPC
    785007035759
    Taxonomies, Classifications, and Categories
    Category Description
    Residential GFCI devices
    Type
    Specification Grade Tamper-Resistant 15A Self-Test Duplex GFCI
    Packaging
    Weight
    0.2800 lb
    Weight per each
    0.28
    Carton
    1
    Package
    10
    Uses, Certifications, and Standards
    nema rating
    5-15R
    Frequency Rating
    60 Hz
    60 HZ
    Application
    Residential;Commercial
    COMMERCIAL/RESIDENTIAL
    environmental conditions
    95% Humidity, UL 94 V2
    standard
    cULus, UL Listed, FSUL
    Operating Temperature
    -35°C to +66°C
