60134 - TAB

60134 - 2/0 Awg Olive Comp Lug

Color-Keyed

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    60134
    Manufacturer
    Color-Keyed
    Manufacturer's Part Number
    60134
    Description
    2/0 Awg Olive Comp Lug
    Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35KV, 2/0 Awg Wire, 1/4 Inch Bolt Size, Tin Plated, Die Code 54, Die Color Code Olive
    Slang Terms

    Suggest a New Term
    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Comp & Mech Lugs and Butt Splices
    UNSPSC
    39121405 - Cable or wire lug
    UPC/EAN/GTIN
    786210601342 / 5415022245899 / 00786210601342
    Weight per unit
    0.14 L
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $13.53 (each)
    Carton
    $67.67 (5 units)
    Standard Packaging
    $676.69 (50 units)
    Stock Availability
    Nacogdoches
    0
    All Stores
    0
    Resources
    Images

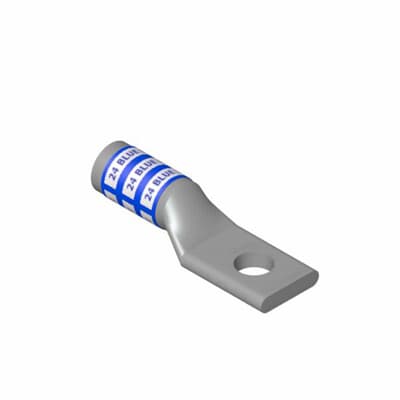

    60134 - Large Image

    60134 - Small Image
    Specifications Sheets


    60134 - Specification Sheet
    Installation Sheets


    60134 - Installation Sheet
    MSDS Sheets


    60134 - MSDS Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    Brand
    COLOR-KEYED
    Cable Size
    2/0 AWG
    Category Description
    Comp & Mech Lugs and Butt Splices
    Color
    OLIVE
    Description
    2/0 AWG OLIVE COMP LUG
    Documents
    Yes
    In Print Catalog
    Yes
    Long Description
    Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35kV, 2/0 AWG Wire, 1/4 Inch Bolt Size, Tin Plated, Die Code 54, Die Color Code Olive
    Manufacturers Part Number
    60134
    Material
    ALUMINUM
    Number of Holes
    1
    Yes
    Product Type
    Connector, Compression 1bolt
    Stud Size
    0.25
    Type
    Long Barrel Aluminum Lug
