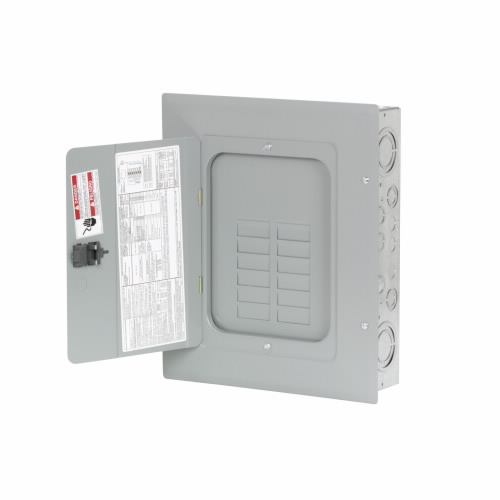

BR1224L125 - ETN

BR1224L125 - 1PH/BR Loadcenter 125A Mlo 12/24 Cir. Al Bus Nema

Eaton

  • $111.67 (Each)
  • $111.67 (Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    BR1224L125
    Manufacturer
    Eaton
    Manufacturer's Part Number
    BR1224L125
    Description
    1PH/BR Loadcenter 125A Mlo 12/24 Cir. Al Bus Nema
    Main Lug Load Center, 12 Spaces, 24 Circuits, 125 A, 120/240 V Ac, #6 to 2/0 Awg Wire Size, Metallic Material, Aluminum Bus Material, 14.31 In Overall Length, 3.88 In Overall Width, 16.75 In Overall Height
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Load Centers & Accessories - Single Phase Main Lug Load Cen  Mark as Incorrect
    Suggest a New Category
    Classification
    Loadcenters & Covers
    UNSPSC
    39121101 - Load centers
    UPC/GTIN
    786676446556 / 00786676446556
    Weight per unit
    17 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $111.67 (Each)
    Stock Availability
    Nacogdoches
    0 (Find nearest stock)
    All Stores
    2
    Resources
    Images


    BR1224L125 - Large Image

    BR1224L125 - Small Image

    BR1224L125 - Large Image

    BR1224L125 - Large Image
    Attachments


    BR1224L125 - Specification Sheet

    BR1224L125 - Specification Sheet

    BR1224L125 - Specification Sheet
    Brochures


    BR1224L125 - Brochure
    Other Links


    BR1224L125 - Other

    BR1224L125 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    125 A
    Voltage Rating
    120/240 V ac
    120/240V V
    Wire Size
    #6 to 2/0 AWG
    #6-2/0 AWG Cu/Al at 60°C or 75°C
    Material
    Metallic
    interrupt rating
    10 kAIC
    Cover Type
    Cover included
    Phase
    Single-phase
    Number of Wires
    Three-wire
    used with
    Type BR 1-inch breakers
    amperage rating
    125 VAC
    Material, Color, and Finish
    Bus Material
    ALUMINUM
    Aluminum
    Enclosure Material
    METALLIC
    Dimensions and Weight
    Overall Length
    14.31 in;363.5 mm
    Size
    B1
    Descriptions
    Product Type
    Eaton BR Main Lug Loadcenter
    Main Lug Load Center
    Long Description
    Main Lug Load Center, 12 Spaces, 24 Circuits, 125 A, 120/240 V ac, #6 to 2/0 AWG Wire Size, Metallic Material, Aluminum Bus Material, 14.31 in Overall Length, 3.88 in Overall Width, 16.75 in Overall Height
    Eaton Eaton BR main lug loadcenter ,No feed-thru lugs,Main lug,200 A,D1R,Aluminum,Cover included,NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,40 Circuits,Twenty-four pole,30 Spaces,Three-wire
    Features
    Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
    Short Description
    NEMA 1 Main Lug Load Center, 12/24 C, 125 A, Ground Bar
    Special Features
    No Feed-Thru Lugs;BREQS125 Hold-Down Screw
    No feed-thru lugs, includes BREQS125 hold-down screw
    Description
    1PH/BR LOADCENTER 125A MLO 12/24 CIR. AL BUS NEMA
    Additional Information
    number of spaces
    12
    51869
    Number of Circuits
    24
    24 VDC
    Enclosure Type
    NEMA 1
    for use with
    Type BR 1-Inch Breakers
    Standards Met
    UL 67 Listed;UL 50 Listed
    Overall Width
    3.88 in;98.4 mm
    Overall Height
    16.75 in;425.5 mm
    Circuit Breaker Compatibility
    BR Circuit Breaker
    Recommended Environment
    Indoor
    Made in USA
    Yes
    dimensions
    98.5520millimetreX36.3474centimetreX42.5450centimetre
    Box Size
    CABLE GRIP, CLOSED MESH SINGLE WEAVE TYPE; 18 INCH EYE LENGTH; 21 INCH MESH LENGTH; 21 MESH LENGTH IN INCH; 2 TO 2.49 INCH CABLE SIZE; CSA APPROVAL; TIN COATED BRONZE MESH MATERIAL; 3260 LB BREAKING STRENGTH; LOOP EYE TYPE; BRYANT. BRAND
    main circuit breaker
    CEMAT RSRT9 V7.0 OS SOFTWARE
    cover
    Cover included
    Manufacturer Information
    Brand
    Eaton Corp
    EATON
    Viton(R)
    Manufacturers Part Number
    BR1224L125
    GTIN
    00786676446556
    UPC
    786676446556
    Taxonomies, Classifications, and Categories
    Category Description
    LOADCENTERS & COVERS
    Type
    Main lug loadcenter
    igcc
    PLUG, NON POLARIZED TYPE; THERMOPLASTIC MATERIAL; WHITE COLOR; 1-15P CONFIGURATION; UL 1706, CSA APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; IMPACT RESISTANT; (2) 18 AWG CORD SIZE; HOMESELECT[T] BRAND
    unspsc code
    39121101
    Packaging
    Weight per each
    17
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Power Distribution
    POWER DISTRIBUTION
    Mounting
    Combination
    Enclosure
    NEMA 1
    standard
    UL 67;UL 50
